SKU: E800082
Model P10
Continuous in-line measurement for 10″ process pipelines

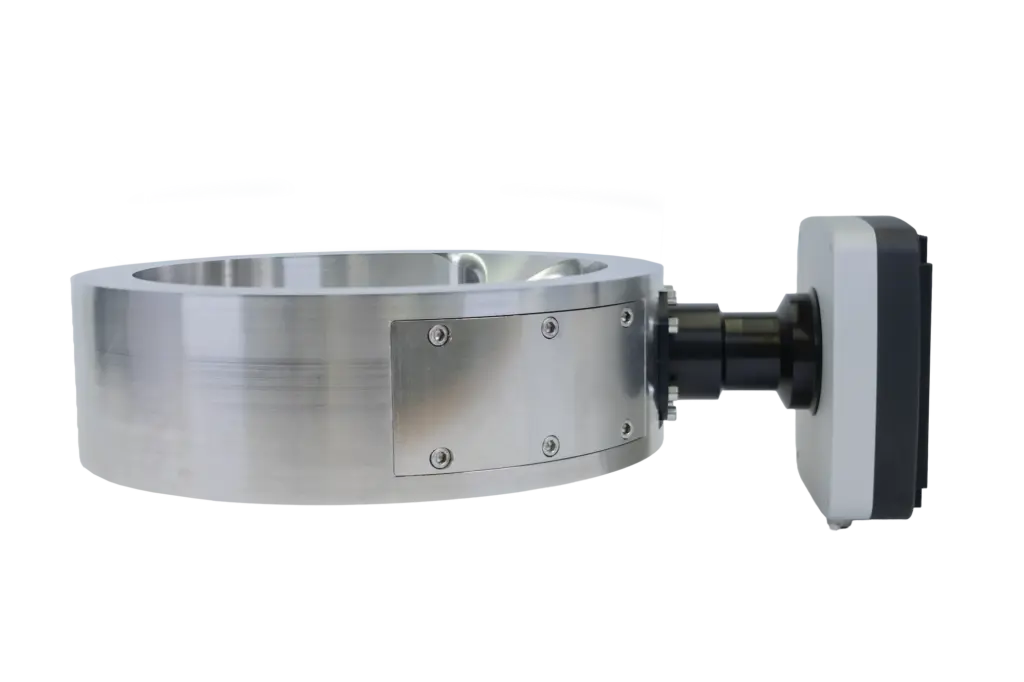

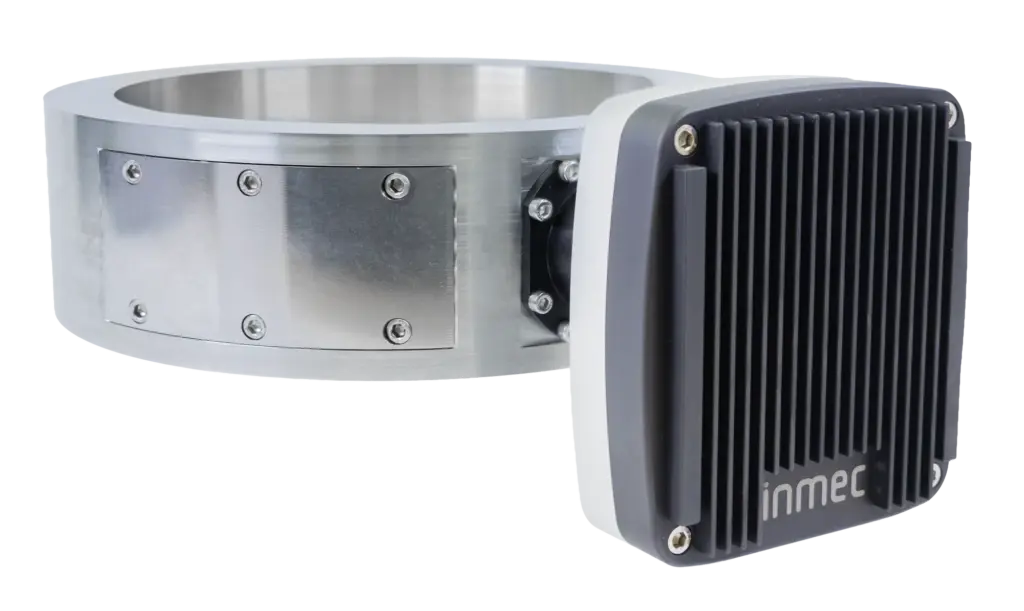

10″ Pipeline Sensor for Brix, Total Solids & Density Measurement
Continuous in-line concentration measurement directly in 10″ process pipelines. The sensor measures total solids content — including both dissolved and suspended components — delivering stable, real-time data under the highest-capacity flow conditions without bypass loops or sample extraction.
Designed for the largest industrial operations including major sugar mills, high-volume food & beverage facilities, large-scale dairy plants, and chemical processing where robust measurement and coating resistance are critical for maximum-capacity continuous production control.
Sugar Processing
- Main mill circulation systems
- Primary evaporator body connections
- High-capacity crystallizer circulation
- Major process distribution mains
Food & Beverage
- Primary production mains
- High-volume juice processing systems
- Large-scale beverage production lines
- Major concentrate processing pipelines
Dairy
- Main milk reception pipelines
- Primary processing distribution systems
- High-capacity whey processing mains
- Large-scale dairy production lines
Chemical & Industrial
- Major circulation loops
- Primary reactor distribution systems
- Large-scale chemical transfer mains
- High-capacity industrial process lines
- Measurement range (Brix / solids):
0-95% Factory configured to specific TS or Density range by customer specification - Accuracy & repeatability:
+/- 0.01 % concentration - Sensitivity:
+/-0.001% concentration - Measuring resolution:
0.01% concentration - Outputs:TS % & Temperature,
4 – 20 mA, Active and Isolated. Max load 750 Ohm. - Process conditions:
- Ph= 3-14
- Temperature=0 – 140 C.
- Pressure: recommended min 1.5 bar to avoid free air
- Sensor body: Aisi 316L.
Flanged process fitting.
Control the process where it flows — inline, in real time.
3-year warranty
A full, industry-leading warranty reflecting confidence in long-term performance.
Stable signal despite coating and buildup
Maintains a stable measurement signal even when product coating or buildup is part of normal operation
Wide Measurement Range
Accurate measurement from low concentrations to high-solids processes — one sensor covers your full production spectrum.
