SKU: E700005

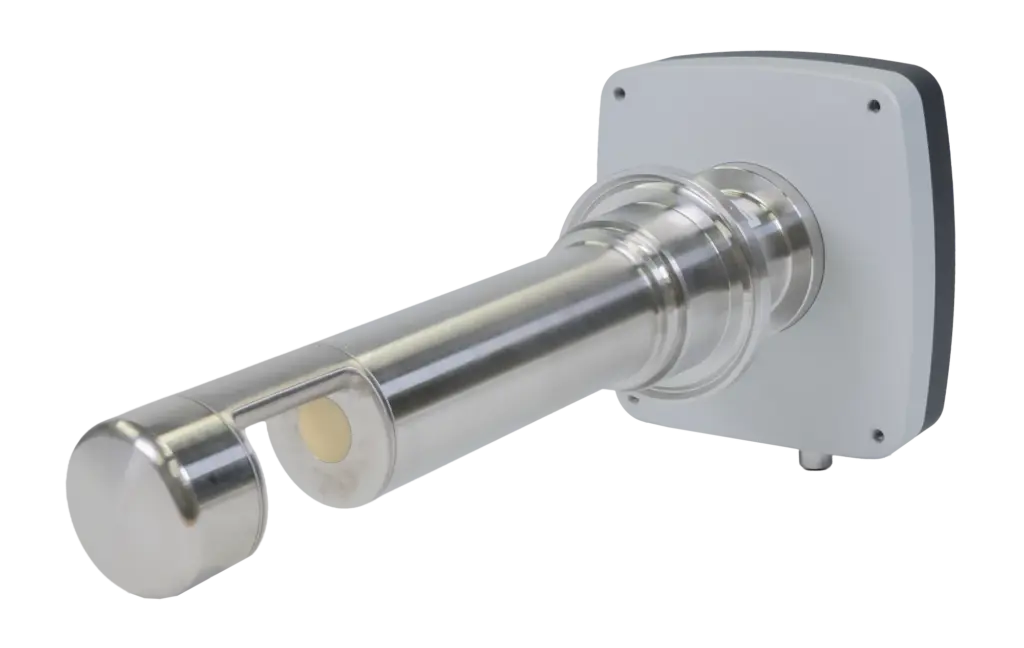

Model IL
Robust tank sensor for continuous Brix monitoring in crystallization and evaporation pipeline applications. Built to withstand demanding conditions with high temperatures. Extended measurement range (0-100°Brix) covers complete process span from low to high concentrations.
Tank and Vessel Sensor for Brix, Total Solids & Density Measurement
The Model IL tank sensor provides continuous Brix, total solids, and density measurement directly inside process tanks and vessels. Installed through a side or top nozzle, the sensor measures bulk product properties without requiring bypass loops or sample extraction.
Designed for food & beverage, sugar, and industrial applications where in-tank visibility is essential for batch control, quality monitoring, and process optimization.
Food & Beverage
- Blending and mixing
- Brix stabilizing
- Infeed Bx control
- Evaporator TS control
- Fermentation infeed
Sugar & Sweeteners
- Clarifiers
- Evaporators
- Crystallizers
- Melters
- Molasses
Industrial
- Sludge TS infeed for dewatering
- Slurry TS control
- Starch
- Latex
- Battery slurries, Anaode&Cathode
- Measurement range (Brix / solids): 0-99%,
Factory configured to specific TS or Density range by customer specification - Accuracy & repeatability:
+/- 0.01 % TS - Sensitivity:
+/-0.001% TS - Measuring resolution:
0.01% TS - Outputs:TS % & Temperature,
4 – 20 mA, Active and Isolated. Max load 750 Ohm. - Process conditions:
- Ph= 3-11
- Temperature= 0 – 140 C
- Pressure: recommended min 1.5 bar to avoid free air
- Sensor body: Aisi 316L.

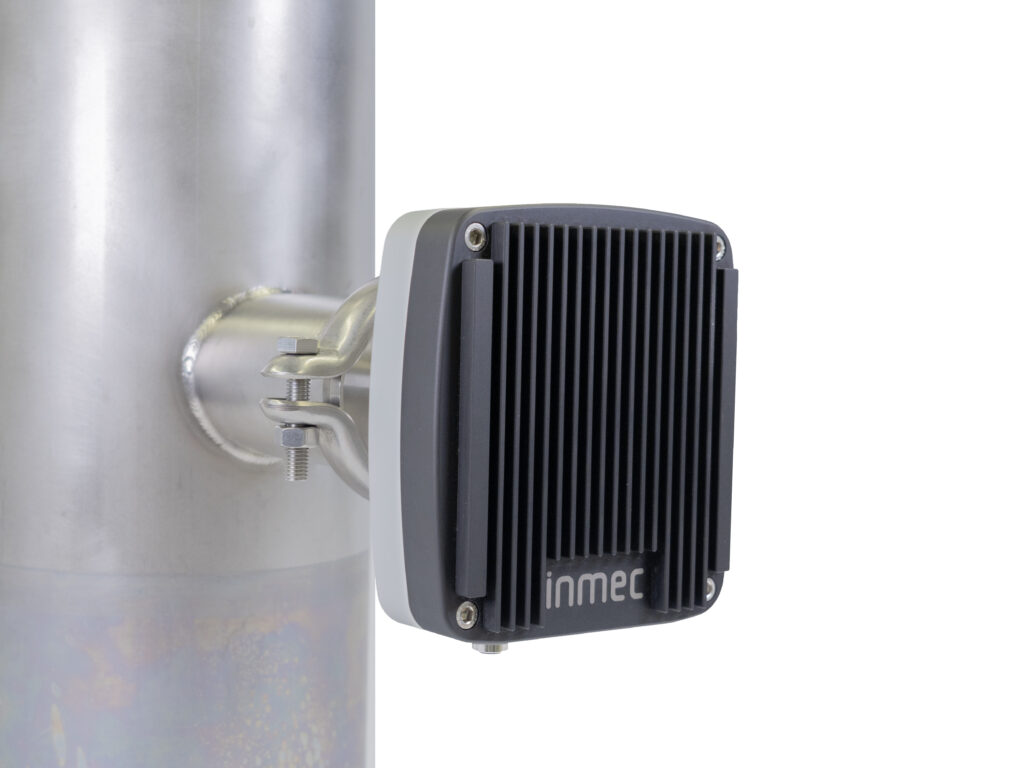

The Model IL Sensor installs directly to the tank wall or pipeline. Standard installation with Union-L clamp with weld ferrule. Custom length weld ferrules and optional bolt adapters available.
Control the process where it happens — inside the tank, in real time.
“Compared to our previous tank measurement setup, maintenance effort dropped significantly, and the signal remained stable throughout long production batches.”
— Process Engineer, Sugar Processing (Europe)
3-year warranty
A full, industry-leading warranty reflecting confidence in long-term performance.
Stable signal despite coating and buildup
Maintains a stable measurement signal even when product coating or buildup is part of normal operation
Wide Measurement Range
Accurate measurement from low concentrations to high-solids processes — one sensor covers your full production spectrum.
Find the Right Model IL Configuration for Your Tank
Share your process details and our engineers will recommend the right configuration.

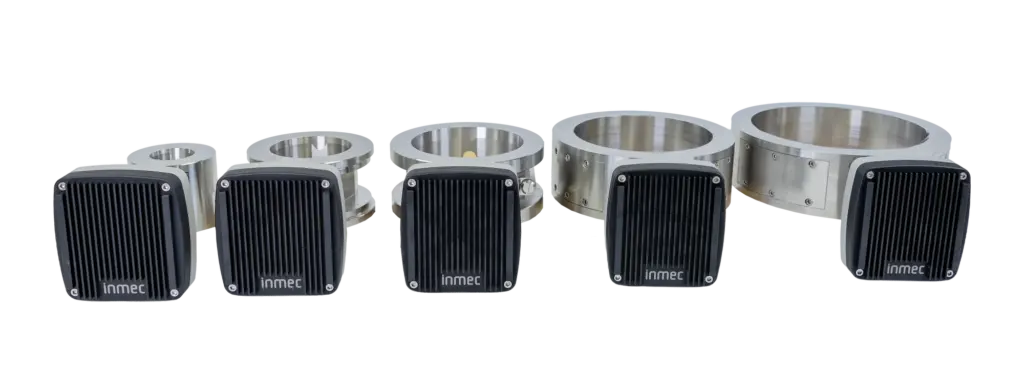

Explore Process Pipeline Models
Looking for in-line measurement instead? View our sensors for fully filled pipelines.
